Termignoni TMAX 530 (12-16) exhaust system

The engineers of the Italian exhaust manufacturer Termignoni have managed to develop a very efficient exhaust for the TMAX 530: the power gain at the rear wheel is greater than 3 hp in the racing configuration (without dB-killer), result, the TMAX 530 gains nearly 10km/h in top speed and pick-up and acceleration are also increasing significantly.

In its road configuration (with dB-killer), the maximum power is barely less but the torque gain at low and medium revs should delight those who want to make their TMAX more lively in urban use.

Some figures: power +3.5hp at 7,800 rpm, torque +6.9 Nm at 4,200 rpm, weight -4kg compared to the original equipment. To improve the performance of the TMAX 530, we recommended the installation of an additional Rapid Bike box, Racing or Evo version, maps (injection and ignition mapping) adapted to the configuration of your TMAX 530 are available. This approved exhaust system is delivered with a second noise reducer (db killer) freeing up performance and noise level, in this configuration the exhaust system no longer meets approval standards.

Performance

Weight 4.2kg (std 8.2 kg, difference -4.0kg)
Then. (with dB killer) 35.52hp at 7,800rpm (std 34.76hp at 7,300rpm, max diff. 1.02hp at 8,200rpm)
Then. (ss dB killer) 37.10hp at 7,800rpm (std 34.76hp at 7,300rpm, max diff. 2.6hp at 8,200rpm)

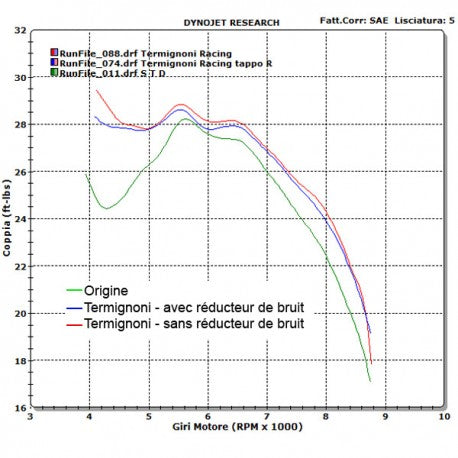

Torque (for dB killer) 39.54Nm at 5,500 rpm (std 38.98Nm at 7,300 rpm, max diff. 4.84Nm at 4,300 rpm)
Torque (ss dB killer) 40.69Nm at 4,100rpm (std 38.98Nm at 7,300rpm, max diff. 6.22Nm at 4,300rpm)

VIDEO (watch)

COMPATIBILITY

TMAX 530 (12-16)
