Malossi TMAX belt transmission crown

The Malossi K-DRIVE pulley is a lighter transmission ratio than the original for belt-driven TMAX.

Characterized by a sought-after aesthetic, the K-DRIVE crowns and pinions have different ratios in order to satisfy all the rider's needs.

The crowns are made of aluminum, hard anodized and black colored. With this treatment Malossi has maintained a particularly light geometry of the part, guaranteeing its high resistance to wear. The teeth are made with a special tool shaped to make the transmission of movement with the belt smooth and silent. The available teeth are z.56, 57, 58, 60. The marking is done in the red anodized sheets screwed to the gear which contain the belt.

Recommended coupling: Pinion 25 - Crown 60

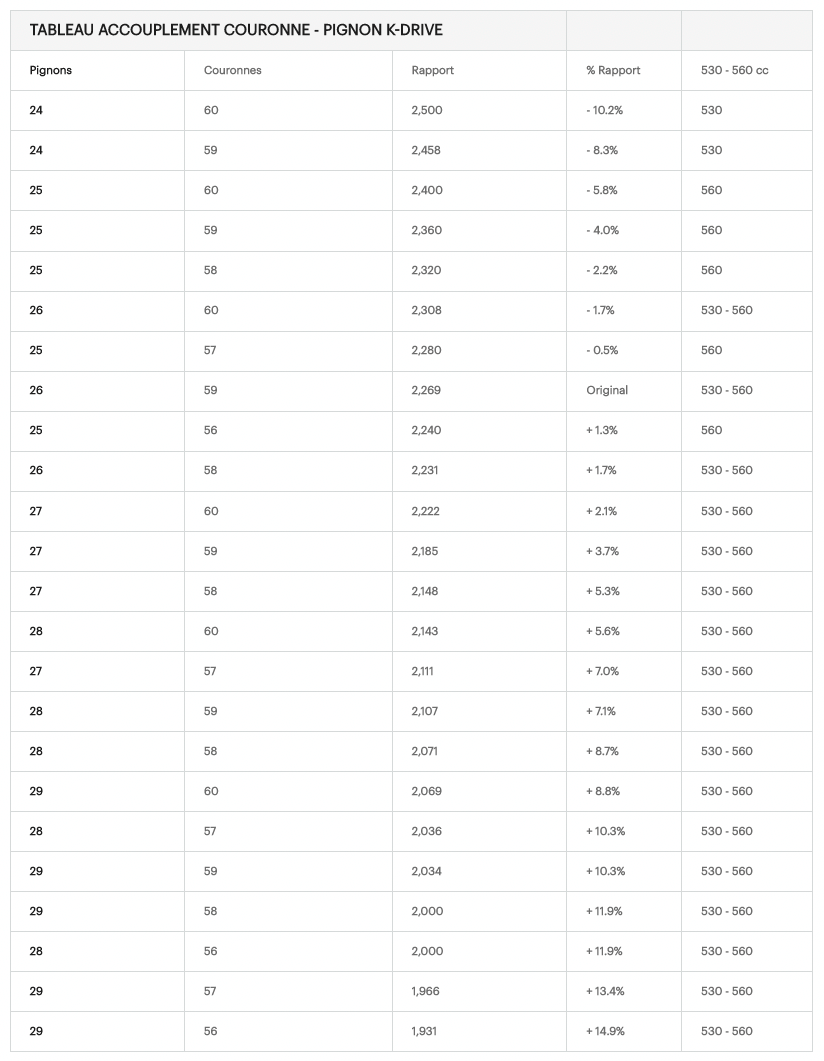

ATTENTION ! The couplings in this table are the only possible ones, otherwise the toothed belt will be either too short or too long.

INSTRUCTIONS (download)

COMPATIBILITY

TMAX 530 (17-19)

TMAX 560 (20-21)
TMAX 560 (22-24)
