Car Play Yamaha TMAX 560

Your CarPlay iPhone or Android with Yamaha TMAX 560 mount to mirror your Waze, Coyote, music content... with optional dash cam!

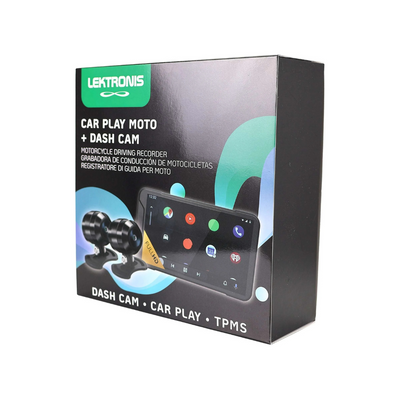

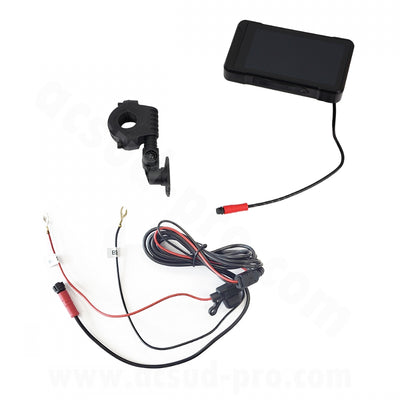

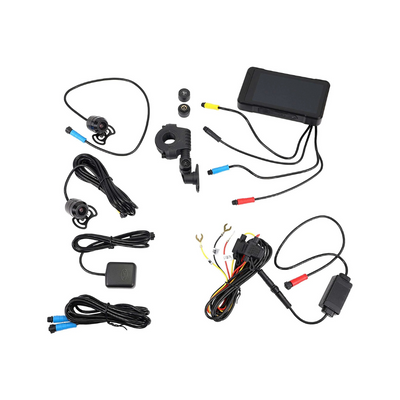

Kit contents:

1x Lektronis device unit

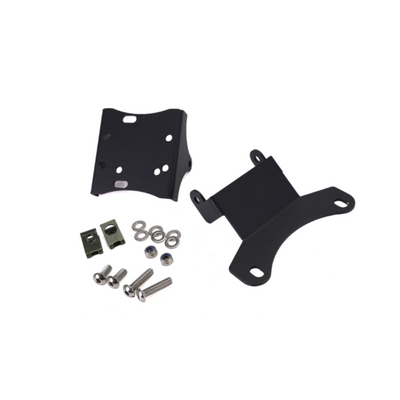

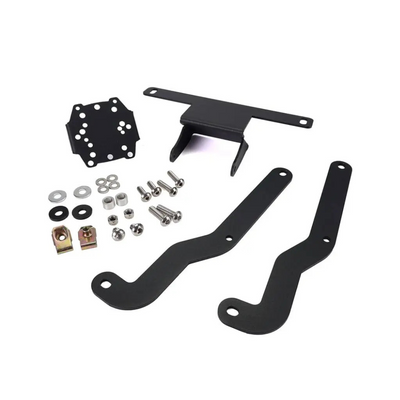

1x universal handlebar mount.
2x tire pressure sensors (optional)
2x camera / dash cam (optional)
1x wiring connectors.
1x GPS module.
1x camera extension cable

General characteristics:

Wireless mirroring of smartphone screen via Android Auto and Apple CarPlay.
Message notification on screen.
Driving recording on 1080p front and 1080p rear cameras

General specifications:

External GPS module.
Dual-band Wi-Fi 2.4G and 5G.
Bluetooth 4.2 connectivity
Device size: 146 mm long, 82.5 mm wide, 28 mm deep.
5.0 inch screen
Weight of the kit including the cameras: 320g.
IP67 protection certification against dust and water.
Operating temperature: -20º to 60º.
Screen specifications
5-inch touchscreen.
HD resolution 1280x720.
Screen mirror specifications:
Wireless system via Wifi, no cables required.
Dual frame rate 30FPS and 60FPS.
Automatic connection upon power-up once configured with the smartphone.
You just have to start and start rolling.
Compatible with Android Auto and Apple CarPlay with your favorite apps anytime, anywhere.
Real-time navigation with no upgrade fees
Hands-free calling to make and answer phone calls, ensuring a safer journey.
2x cameras with Sony IMX307 2.0MP sensor and HDR.
Weight per chamber: 80g.
Full HD resolution
Frame rate at 30 FPS.
Lens aperture degrees 170º.
Mirroring the video screen to correct the preview image for inverted views.
In the event of a collision or accident, it protects the recordings by preventing them from being overwritten.

Installation features:
Direct power supply from the motorcycle battery.
Fixed installation on the motorcycle using the bracket included in the kit.
Cable kit included for power, cameras and GPS.
Power output cable
