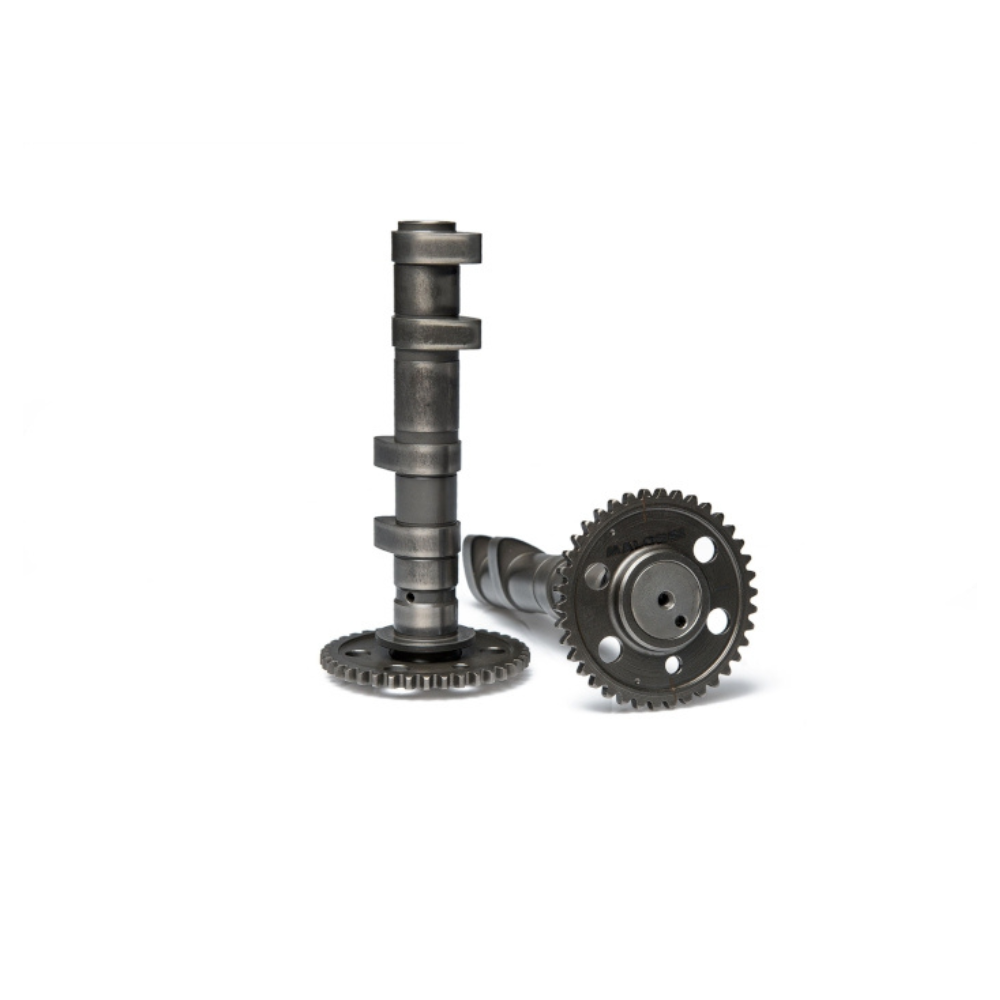

Malossi TMAX 560 camshaft

The camshaft is the most important part of the 4-stroke engine in terms of timing.

It is the camshafts that are entrusted with the management of the opening and closing of both the intake valves for supplying the combustion chamber and the opening and closing of the exhaust valves for the evacuation of burnt gases.

The Double Power Cam Malossi have been developed in order to obtain an optimal and progressive increase in power if they are mounted on the original cylinder or exponential if they are mounted on the 560cc Malossi twin-cylinder.

Malossi has thought of both carburetor and injection vehicles: each model, first or second series, can boast, in fact, of a significant power gain if they are fitted with the Malossi Double Power Cam.

The Double Power Cam Malossi are the result of a long and meticulous project in our test room.

The industrial production process scrupulously followed the specifications imposed by the technical department.

From the choice of materials through the use of the latest generation of very high precision CNC, to thermochemical treatments and finally, adjustment and assembly tests.

TECHNICAL INFORMATIONS

Camshaft controlling the exhaust valves
Camshaft controlling the intake valves
In superbonded, case-hardened, tempered, nitrided and ground steel with recalculated, increased and re-profiled lobes.

INSTRUCTIONS (download)

COMPATIBILITY

TMAX 560 (2020-2021)
TMAX 560 (2022-2024)
